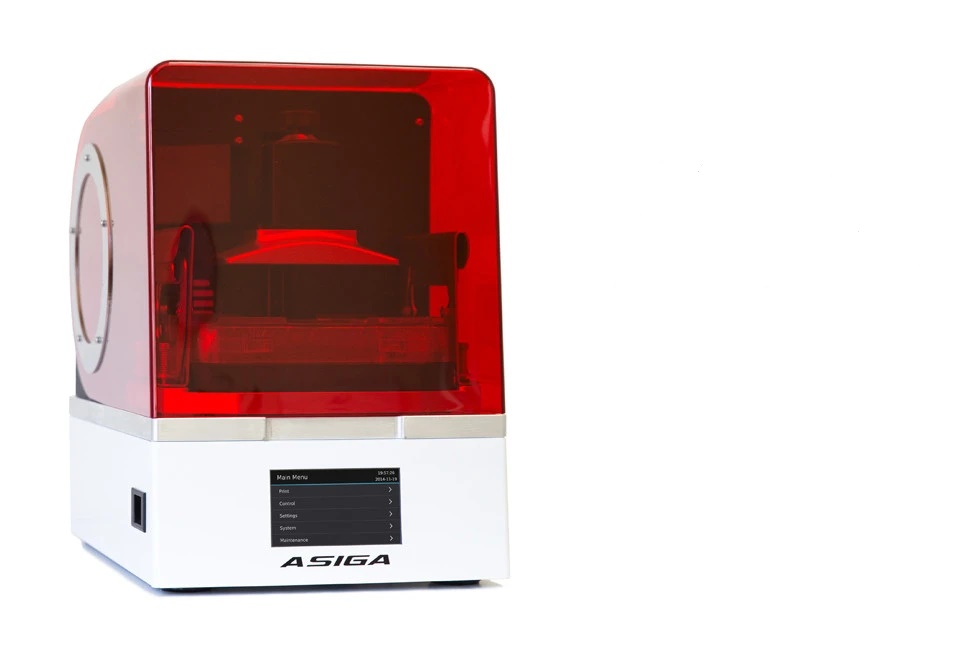

MAX / MAX UV

The Asiga MAX is the world’s most advanced lab 3D printer offering exceptional productivity in a small footprint.

3D Printer

Product Overview

62µm Print Precision

Optimized for both dental and audio lab or clinic environments.

Digital Dentistry

Manufacture dental orthodontics, crown & bridge, surgical guides, dental models, custom trays and partial dentures.

After extensive internal testing of a variety of 3D printing systems, the Asiga MAX UV is clearly one of the best desktop

3D printers in terms of print quality and consistency for the tested dental indications.

- Alex Pilet, Head of Advanced Technologies

SPS™ Smart-Positioning-System Technology

Asiga's unique SPS™ process guarantees every layer is formed accurately. Accurate layer formation is the key to achieving consistently accurate results in any production environment.

« SPS™ - How it Works

Open Material System

Select from a range of Asiga materials with the added benefit of using any material from any manufacturer. Over 380 materials available.

Why 385nm UV LEDs?

3D printing materials cure faster at deeper UV wavelengths (385nm) reducing XY scattering and over-cure. The result is consistent accuracy, production reliability and the ability to process water-clear materials.

GN ReSound is a global leader in intelligent audio solutions and we print with confidence on the Asiga MAX UV.

- Mehdi Hoorzad, Process Development Director

Fastest Material Changeover

The fastest material change over than any other product on the market. Complete in under 30 seconds.

Audiology Lab Production

Suited to the manufacture of earshells, earmoulds and silicone earmoulds.

Single Point Calibration

Simple platform calibration and internal radiometer for automatic LED calibration.

Trusted by Laboratories Globally

Build to perform in the most challenging production environments.

Free and Unlimited Lifetime Technical Support

Guaranteed.

Affordable Digital Manufacturing

It's something Asiga invented.

Product specification
Build Volume X, Y, Z 119 × 67 × 75mm   4.69 × 2.64 × 2.95 inches
Pixel Resolution 62µm
Technology DLP
LED Wavelength 385nm (high power UV LED) or 405nm
Material Compatibility Asiga materials, 100% Open Material System — use any suitable third party material
Software Asiga Composer software. Lifetime updates included
File Inputs STL, SLC, PLY, STM (Asiga Stomp file format)
Network Compatibility Wifi, Wireless Direct, Ethernet
Power Requirements 100 to 240 VAC, 50/60 Hz, ≤2 Amps
System Sizing 260 × 385 × 370mm / 19.3 kg   10.2 × 15.2 × 14.5 inches / 42.6 lb
Packed Sizing 410 × 500 × 480mm / 21.6 kg   16.1 × 19.7 × 18.9 inches / 47.6 lb
Warranty 12 months manufacturer's warranty
Technical Support Unlimited lifetime technical support included
Bundle Includes 3D printer, Composer software, 1 kg Asiga material, 1L build tray, Asiga Flash post-curing chamber, calibration toolkit

Composer

Composer is the software interface to all our 3D Printers. Powerful, intuitive and free.

Asiga Flash

A compact post curing device for curing parts after printing.

Calibration Toolkit

All the tools you need to calibrate your Asiga 3D printe

Material Pack

1L Asiga material pack included. Material pack consists of 1L material bottle and 1L build tray.

Our key industries.

Digital Dentistry

Precision for the digital dental lab

Audiology Production

Production efficiencies and reliability

Jewelry Manufacture

Beautifully smooth casting patterns
